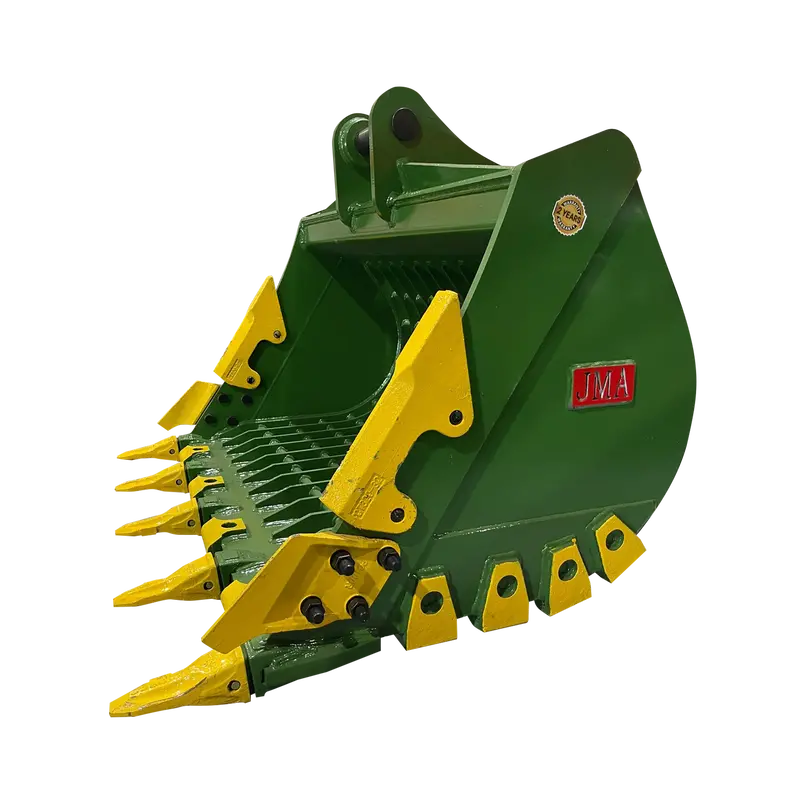

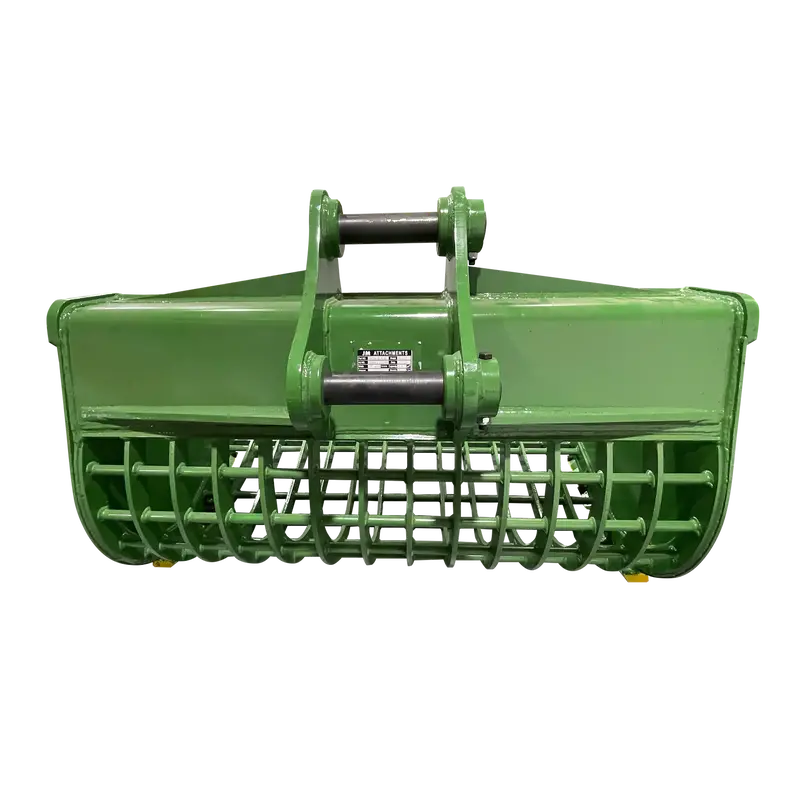

JMA Attachments Severe Duty Skeleton Bucket with Teeth | Bucket Width 60″ inches | Pin Size 70mm | For 15 – 18 Tons Excavators
Description
Revolutionize your material sorting and heavy-duty excavation with the 60″ Severe Duty Skeleton Bucket with Teeth for 15 – 18 Tons Excavators. 70mm Pins. This high-performance 60″ Severe Duty Skeleton Bucket with Teeth is engineered for unparalleled efficiency in separating materials and tackling the toughest digging tasks.
Key Features
- Versatile Design: Ideal for Excavators, enhancing your equipment’s capabilities in various applications.
- Robust Construction: Crafted from AR400 Steel with 25 mm thick side walls for exceptional durability.
- Efficient Material Separation: Features 12 tines, each 12 mm thick, for optimal sorting of materials.
- Superior Digging Power: Equipped with 5 Teeth teeth for effective penetration in challenging conditions.
- Impressive Capacity: Boasts a 1.20 m³ capacity for efficient high-volume operations.
- Enhanced Performance: 3x Reinforced Side Plates for improved functionality and longevity.
Detailed Specifications
| Attribute | Value |
|---|---|
| Carrier Weight Class (tn) | 15 – 18 Tons |
| Bucket Width (mm) | 1,524 mm |
| Bucket Width (in) | 60″ |
| Inner Bucket Height (mm) | 950 mm |
| Bucket Side Wall Thickness (mm) | 25 mm |
| Bucket Depth (mm) | 655 mm |
| Capacity (yd³) | 1.57 yd³ |
| Capacity (m³) | 1.20 m³ |
| Bucket Tooth Series | J250 |
| Tooth Style | Rock Chisel Bucket Tooth |
| Tooth (ct.) | 5 Teeth |
| Tooth Part Number | 1U3252RC |
| Tooth Pin Part Number | 9J2258 |
| Tooth Retainer Part Number | 8E6259 |
| Shank Protector Part Number | 112-2489 |
| Tines (ct.) | 12 |
| Tines Thickness (in) | 0.47″ |
| Tines Thickness (mm) | 12 mm |
| Tines Spacing (mm) | 100 mm |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Left Side Cutter Part Number | PC100L |
| Right Side Cutter Part Number | PC100R |
| Front Pin Length (mm) | 449 mm |
| Rear Pin Length (mm) | 449 mm |
| Front Pin Diameter (mm) | 70 mm |
| Rear Pin Diameter (mm) | 70 mm |
| Front Ear to Ear Distance (mm) | 283 mm |
| Rear Ear to Ear Distance (mm) | 283 mm |
| Center to Center Distance (mm) | 464 mm |
| Carrier Weight Class (lbs) | 30,000 – 36,000 lbs |
| Features | 3x Reinforced Side Plates |
| Product Weight (lbs) | 1,631.42 lb |
| Product Weight (kg) | 740 kg |
Fits To
|
Brand |
Model |
|---|---|
| Caterpillar | 315D2 GC, 315F LCR, 315 GC, 315D2L, 317BLN, 318BL2, 318BLN, 318CLN, 318D2L, 318DL2, 318EL2, 318FL2, 315BL, 315CL, 315DL, 315LN, 316EL, 316FL, 316GC, 317BL, 317GC, 318CN, M313D, 315B, 315C, 315D, 315F, 315L, 316E, 317B, 317N, 318B, 318E, 215, 315, 317 |
| Hyundai | R160LC-3, R160LC-7, R160LC-9, R180LC-3, R180LC-7, R180LC-9, R210LC-3, R170W-3, R200W-2, R200W-3, R160LC, R180LC, R200LC, R220LC |
| Kato | 700SEV2, HD700SE, HD700V2, HD700, 900 |
| Kobelco | SK170LC-8 |
| Komatsu | PC160 LC-7A E0, PC150 HD LC-5, PC150N HD-5K, PC158US LC-2, PC160 LC-7E0, PC160 LC-7KA, PC180 LC-7E0, PC180N LC-5K, PC180N LC-6K, PC180N LC-7K, PC150 HD-5K, PC150 LC-3W, PC150 LC-6K, PC150 LC-8K, PC150 LGP-6, PC150N HD-5, PC160 LC-6K, PC160 LC-7E, PC160 LC-7K, PC160 LC-7L, PC160LC-7EO, PC170 LC-10, PC170 LC-11, PC180 LC-5K, PC180 LC-6K, PC180 LC-7K, PC180L LC-3, PC180N LC-3, PC180N LC-5, PC180N LC-6, PC180N LC-7, PC150 HD-3, PC150 HD-5, PC150 LC-1, PC150 LC-3, PC150 LC-5, PC150 LC-6, PC150 LC-7, PC158US LC, PC160 LC-6, PC160 LC-7, PC160 LC-8, PC180 LC-3, PC180 LC-5, PC180 LC-6, PC180 LC-7, PC150N HD, PC158US-2, PC160N LC, PC180N LC, PC150 HD, PC150 LC, PC150 SE, PC150-3W, PC150-5K, PC150-6K, PC150C-3, PC150C-6, PC150L-6, PC158 LC, PC160 LC, PC160-6K, PC160-7K, PC168 LC, PC170 LC, PC180 LC, PC180-3K, PC180-5K, PC180-6K, PC150-1, PC150-3, PC150-5, PC150-6, PC160-6, PC160-7, PC160-8, PC180-3, PC180-5, PC180-6, PC180-7, PC150C, PC150L, PC150, PC158, PC160, PC180, PW150 |
| Liebherr | 922 |
| Samsung | SE130LC |
| Sumitomo | LS2800FJ, S2800FJ |
| Volvo | EC160B LC, EC160C LC, EC150 LC, EC160 LC, SE170W-3, EC160CL, EC160DL, EC160EL, EC170DL, EC180CL, EC180DL, EC180EL, MX175WS, EC150B, EC150C, EC160B, EC160C, EC160N, EC160P, EC180B, EC180C, EC180D, EC150, EC160, EW170 |
