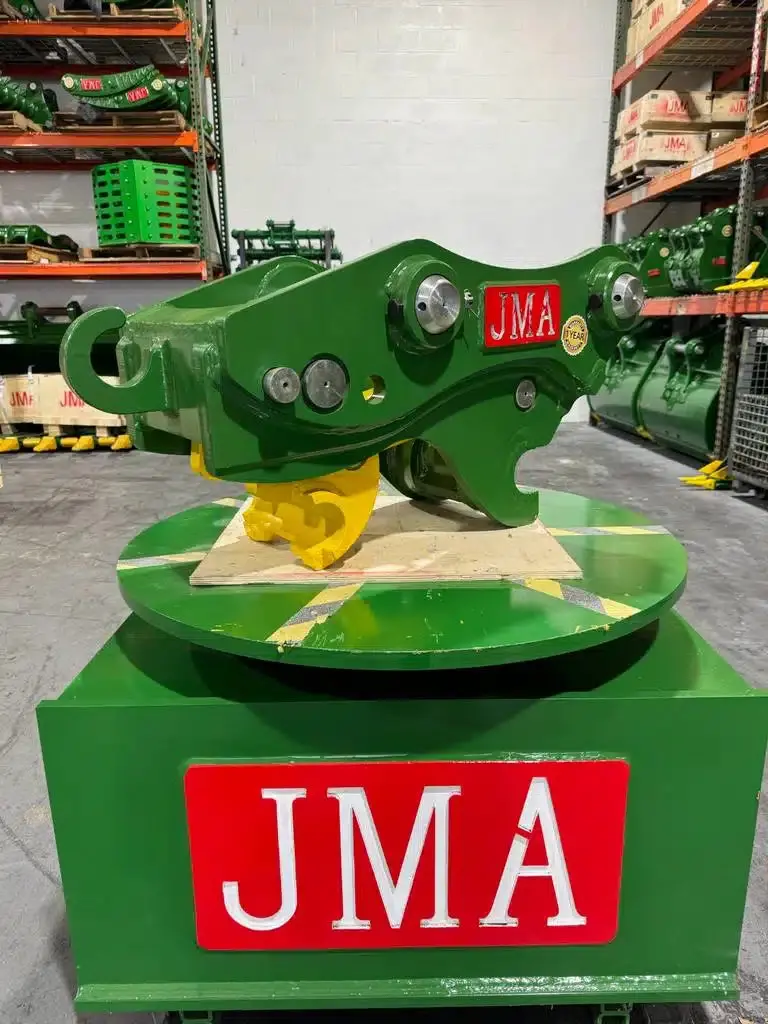

JMA Attachments Hydraulic Quick Coupler | Pin Size 65mm | Carrier Weight 10 – 15 Tons | For Excavators
Description
Revolutionize your approach to excavation with the Hydraulic Quick Coupler for 10 – 15 Tons Excavators. 65mm Pins. Crafted for Excavators in the 20,000 – 30,000 lbs range, this cutting-edge hydraulic quick coupler system redefines efficiency and versatility in attachment management.
Key Features
- Seamless Attachment Changes: Switch tools in seconds from the safety of your cab, boosting overall productivity.
- Industry-Leading Safety: Advanced locking mechanism with visual and audible confirmation for operator peace of mind.
- Durability Assured: AR400 Steel construction withstands the rigors of intense daily use in harsh environments.
- Hydraulic Optimization: Superior flow design enhances attachment performance and reduces fuel consumption.
- Universal Compatibility: Works flawlessly with a wide range of attachments, maximizing your machine’s capabilities.
Detailed Specifications
| Attribute | Value |
|---|---|
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Accessories Included | Installation Kit |
| Front Pin Diameter (mm) | 65 mm |
| Rear Pin Diameter (mm) | 65 mm |
| Front Ear to Ear Distance (mm) | 260 mm |
| Rear Ear to Ear Distance (mm) | 260 mm |
| Center to Center Distance (mm) | 362 mm |
| Front Pin Length (mm) | 449 mm |
| Rear Pin Length (mm) | 449 mm |
| Carrier Weight Class (tn) | 10 – 15 Tons |
| Carrier Weight Class (lbs) | 20,000 – 30,000 lbs |
| Product Weight (lbs) | 396.83 lb |
| Product Weight (kg) | 180 kg |
Fits To
|
Brand |
Model |
|---|---|
| Case | CX145D MSR, CX130B LC, CX130C LR, CX130D LC, CX130 LC, CX135MS3, CX135MSR, CX145CSR, CX145DSR, CX135CR, CX135SR, CX130B, CX130C, CX130D, CX130E, CX130K, CX135C, CX140E, CX145C, CX130, CX135, CX90 |
| Caterpillar | 314CL LCR, 312B LGP, 312D2 GC, 313D2 GC, 314C LCR, 314D LCR, 314E LCR, 314G LCR, 311DLRR, 311F RR, 311FLRR, 313B CR, 313C CR, 313D CR, 313D2 L, 313FLGC, 314C CR, 314D CR, 314E CR, 314E SR, 314F CR, 311 V2, 311C U, 311DRR, 312 V2, 312BLN, 312CLR, 312D2L, 312F L, 312FGC, 313BSR, 313CSR, 313DSR, 313FGC, 311BL, 311FL, 312BL, 312CL, 312D2, 312DL, 312EL, 312GC, 313D2, 313DL, 313FL, 313GC, 314DL, 314EL, 315FL, E120B, 311B, 311C, 311D, 312B, 312C, 312D, 312E, 312F, 312L, 313B, 313C, 313D, 313E, 313F, 314C, 311, 312, 313, 314 |
| Daewoo | S130W-111, S130 LC V, S155 LC V, S140LC-V, S130-2 |
| Develon | DX140LCR-7K, DX140LC-7K, DX140LCR-7, DX165WR-7, DX100W-7, DX140W-5, DX140W-7, DX160W-7 |
| Doosan | DX160 LC-5 HT, DX140 LC-9C, DX140 LCR-3, DX140 LCR-5, DX140 LCR-7, DX150 LC-9C, DH150 LC-7, DX140 LC-3, DX140 LC-5, DX140 LC-7, DX160 LC-3, DX140LCR-7, DX130-9CN, DX140 LCA, DX140 LCR, DX140WACE, DX150W-9C, DX165WR-7, S140WV RW, DX160 LC, DH140W-7, DH150W-7, DX100W-7, DX140W-3, DX140W-5, DX140W-7, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX140LC, DX140WA, DX140WE, S140W V, DX140W, DX160W, S130WV, S160WV, DX130, DX140, DX120, DX140LC-7K |
| Hitachi | H15 Super Long, ZX200 H15 Supe, ZX130 LCN-5B, ZX135USOS-5B, ZX130 LC-5N, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-6, ZX130 LCN-7, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USOS-3, ZX135USOS-6, ZX135USTN-Z, EX100WD-3C, ZX120USR-5, ZX130 LC-3, ZX135US LC, ZX135US-5B, ZX135US-5N, ZX135US-6N, ZX135USB-3, ZX135USB-5, ZX135USK-3, ZX135USK-6, ZX135USR-5, EX100WD-1, EX100WD-2, EX100WD-3, EX125WD-5, EX130UR-1, EX130UR-5, EX135UR-1, EX135UR-5, ZX130 LCM, ZX130 LCN, ZX130K HG, ZX130K-5B, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-6, ZX135US-7, ZX135US-E, ZX110M-3, ZX120 IV, ZX120 LC, ZX120-5B, ZX130 LC, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6N, ZX130K-3, ZX130K-6, ZX135USK, ZX135USM, ZX140W-3, EX100-1, EX100-2, EX100-3, EX100-5, EX100WD, EX120-1, EX120-2, EX120-3, EX120-5, EX135UR, ZX110-2, ZX110-3, ZX110BL, ZX120-2, ZX120-3, ZX120-6, ZX120BL, ZX125US, ZX130-3, ZX130-5, ZX130-6, ZX130-7, ZX130BL, ZX130MT, ZX135UR, ZX135US, EX130K, EX130W, ZX110E, ZX110M, ZX120B, ZX120E, ZX130H, ZX130K, ZX130L, ZX135U, ZX140H, EX100, EX120, EX130, EX135, UH053, UH063, ZX110, ZX120, ZX130, ZX135, EX-5, ZX130-7H, ZX135US-7H |
| Hyundai | R125LCR-9A, HX145LCR, R130LC-3, R140LC-7, R140LC-9, R145LC-9, R130W-3, R140W-7, HX140L, R110-7, R130LC, HX125, HX140, HX145, R120W, 130W, HX130A LCR, HX140A L, HX145A LCR |
| JCB | 131LLC, 150X-1, JS130C, JS145W, JS130, JS131, JS135, JS145, JS160, JZ140, JZ141, 131X, 140X, 145X, 150X, 814S |
| John Deere | 120C LC, 120 LC, JD120, 120C, 120D, 130G, 135C, 135D, 135G, 490D, 110, 120, 135 P-Tier |
| Kato | HD513 MR-3, HD512 E, HD512-3, HD512, 450, 512, 572 |
| Kobelco | SK135SR 1E, SK115SRDZ, SK125SR-2, SK135SR-2, SK135SR-3, SK140LC-8, SK120-2, SK120-5, SK130-8, SK130LC, SK130UR, SK135SR, SK120v, K905, SK140SRLC, SK130LC-11 |
| Liebherr | R914 |
| Linkbelt | 135 X3 SPIN, 130 X4LC, 130 LX, 130 X2, 130 X3, 130 X4, 135 LX, 145 X3, 145 X4 |
| Liugong | 915D, 915E |
| Sany | SY135 IV, SY135-3A, SY130-1, SY135-2, SY155U, SY155W, SY115, SY125, SY135, SY155, SY125C PRO, SY140C-9S, SY135C-9, SY155H-9, SY115C, SY135C, SY155C, SY155H |
| Sumitomo | SH120- 2, SH120-A3, SH125X-3, SH145X-6, SH120-1, SH120-3, SH130-5, SH135X, SH120 |
| Takeuchi | TB2150R, TB1140, TB2150 |
| Terex | 145 |
| Volvo | MX135WS/LS, EC135B LC, EC140 LCM, EC140B LC, EC140E LM, SE130LC-3, EC140 LC, EC140CLM, EC140DLM, ECR145CL, ECR145EL, SE130W-3, EC140-7, EC140CL, EC140DL, EC140EL, ECR145C, EC120D, EC140B, EC140C, EC140D, EC140E, EC145E, ECR145, EC120, EC130, EC140, EW130, ECR145E, ECR145SE |
| XCMG | XE155UCR, XE155U, XR155U |
