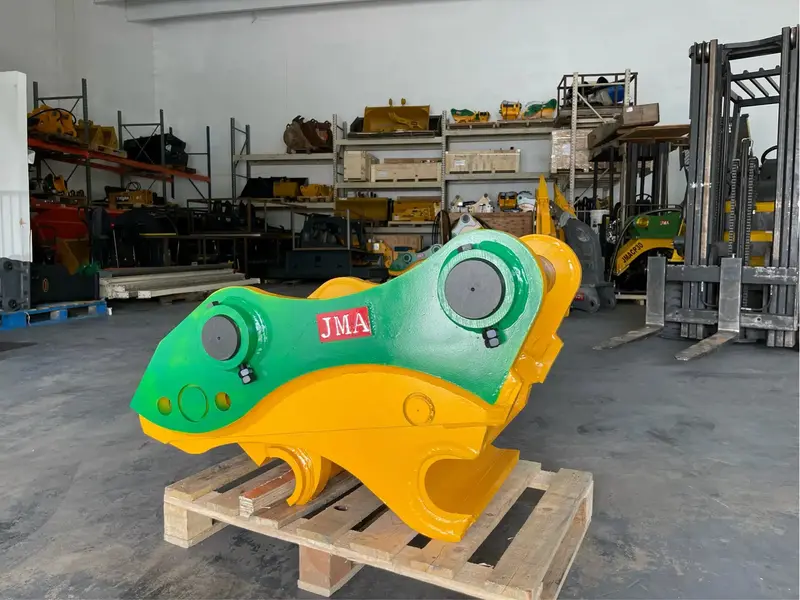

JMA Attachments Hydraulic Quick Coupler | Pin Size 110mm V 100mm | Carrier Weight 33 – 55 Tons | For Excavators
Description
Elevate your excavation capabilities with the Hydraulic Quick Coupler for 33 – 55 Tons Excavators. 110mm | 100mm Pins. Designed for Excavators in the 66,000 – 110,000 lbs range, this state-of-the-art hydraulic quick coupler system redefines attachment management and operational efficiency.
Key Features
- Rapid Attachment Swaps: Change tools in seconds from the cab, dramatically reducing downtime and increasing productivity.
- Uncompromising Safety: Advanced locking mechanism with multiple electronic and mechanical safeguards for secure operation.
- Rugged Resilience: AR400 Steel construction ensures longevity and reliability in the harshest job site conditions.
- Hydraulic Excellence: Optimized flow design for superior attachment performance and reduced fuel consumption.
- Universal Compatibility: Seamlessly works with a wide range of attachments, including advanced grade control systems.
Detailed Specifications
| Attribute | Value |
|---|---|
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |

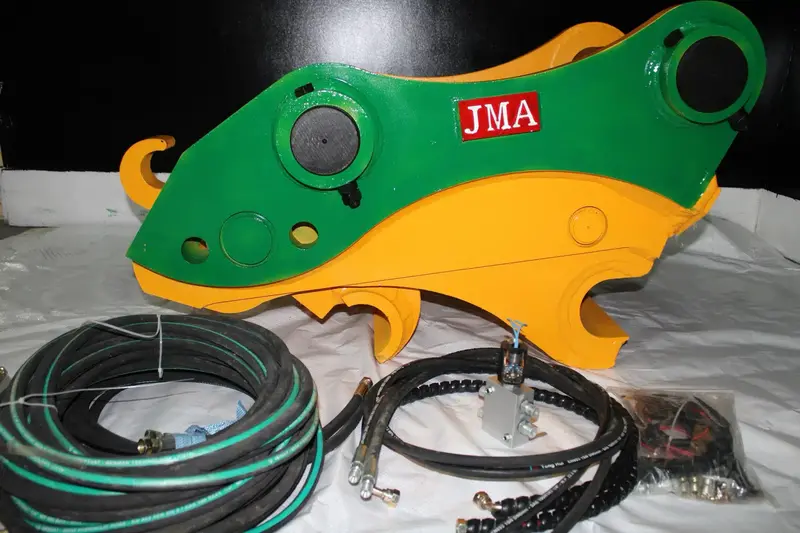

| Accessories Included | Installation Kit |
| Front Pin Diameter (mm) | 110 mm |
| Rear Pin Diameter (mm) | 100 mm |
| Front Ear to Ear Distance (mm) | 442 mm |
| Rear Ear to Ear Distance (mm) | 442 mm |
| Center to Center Distance (mm) | 587 mm |
| Front Pin Length (mm) | 655 mm |
| Rear Pin Length (mm) | 655 mm |
| Carrier Weight Class (tn) | 33 – 55 Tons |
| Carrier Weight Class (lbs) | 66,000 – 110,000 lbs |
| Product Weight (lbs) | 705.48 lb |
| Product Weight (kg) | 320 kg |
Fits To
|
Brand |
Model |
|---|---|
| Caterpillar | 345BL II UHD, 345BL LC VG, 345BL ME II, 349 NEW GEN, 345B LC II, 345BL GMX, 345BL UHD, 345DL UHD, 349D L XE, 349D2 LME, 349F L XE, 345BL II, 345BL LR, 345BL ME, 345C LRE, 345C UHD, 345CL ME, 345CL VG, 345DL ME, 345DL VG, 349D LME, 349E LME, 349EL VG, 352F LRE, 352F UHD, 345B II, 345B LC, 345C LC, 349E LR, 350L ME, 350L V2, 352F XE, 349D2L, 350 ME, 350 V2, 352LRE, 345 D, 345BL, 345CL, 345DL, 345GC, 349D2, 349DL, 349EL, 349FL, 352FL, 345B, 345C, 345D, 345L, 349D, 349E, 349F, 349L, 350L, 352F, 352L, 345, 349, 350, 352, 355 |
| Daewoo | S400LC-111, DX420 LC V, S420LC-V, S400 |
| Develon | DX420 LC-5, DX420 LC-7 |
| Doosan | DX420 LC-9C, DH420 LC-7, DX400 LC-5, DX420 LC-3, DX420 LC-5, DX420 LC-7, DX420 LC-9, DX420 LCA, S400 LC V, DX420LC, S420LC |
| Hitachi | EX400-1, EX400-3, EX400-5, ZX450-3, EX400, UH23 |
| John Deere | 470 P-TIER, 450C LC, 450D LC, 470G LC, 450 LC |
| Komatsu | 345BL |
| Samsung | SE350LC |
| Sany | SY500H, SY485, SY500, SY550, SY500HRD, SY415H, SY420C, SY465C, SY485H, SY550H |
| Volvo | EC340B LC, SE360LC-3, SE460LC-3, EC330 LC, EC340 LC, EC360 LC, EC320LC, EC330CL, EC340DL, EC350DL, EC350EL, EC360BL, EC360CL, EC360DL, EC380CL, EC380DL, EC380EL, MX365LS, MX455LS, EC330B, EC330C, EC340D, EC350D, EC350E, EC360B, EC360C, EC360D, EC380D, EC460B, EC460C, EC330, EC340, EC360, EC460 |
