Product Description
Rinieri In-Row Rotary Harrow | ELX Series | Working Width 65″ & 100″ inches | Horsepower 40 HP | For Tractors
DESCRIPTION

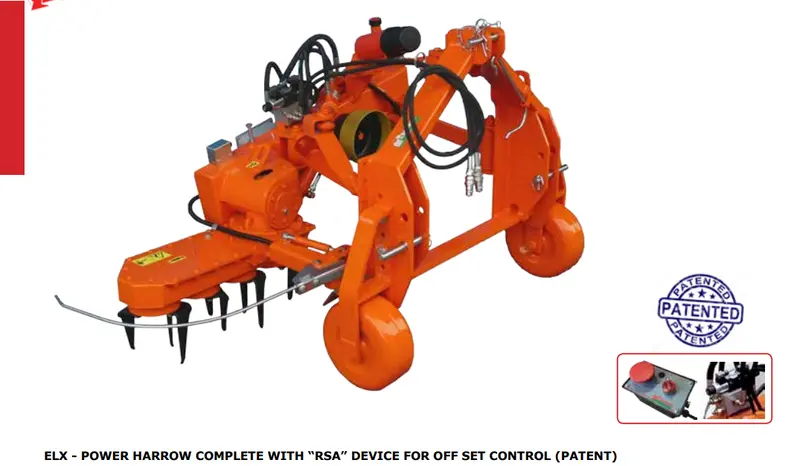

The ELX In-Row Rotary Harrow is designed for durability and reliability in tough, stony soil conditions. Featuring a robust three-arm side shift and an anti-shock gas cylinder for dampening, this machine is built for demanding applications. It comes complete with an innovative “RSA” off-set control device and a ratchet-style torque limiter for secure operation.
The ELX is equipped with an electronically controlled hydraulic tilting system and an electro-hydraulic safety control, ensuring that the machine can be easily and safely operated even in challenging conditions. The harrow’s adjustable working head makes it ideal for both vineyard and orchard operations.
Key Features
- Patented “RSA” Off-Set Control: Allows for precise positioning of the machine, enhancing efficiency in tough, stony soils.
- Hydraulic Tilting and Side Shift: The three-arm hydraulic side shift combined with hydraulic tilting provides excellent control and adaptability for varied row conditions.
- Anti-Shock Gas Cylinder: This feature absorbs impacts from rocky terrain, protecting the machine from damage.
- Torque Limiter for Secure Operation: The special PTO shaft with a ratchet-style torque limiter ensures safe use and prevents mechanical overload.
- Electro-Hydraulic Safety Control: Equipped with an emergency push button to override the system, ensuring operator safety in case of sudden issues.
- Durable Design: Built for heavy-duty operations, it maintains performance in both stony and hard soil environments.
Detailed Specifications
Frame
- 3-point hitch CAT.1-2
- Hydraulic adjustable tilting
- Wheels for stable operation
Safety
- Anti-shock device
- Electro-hydraulic safety control with push-button override
On the Tractor
- Electronic device control for precision
- Cardan joint with clutch

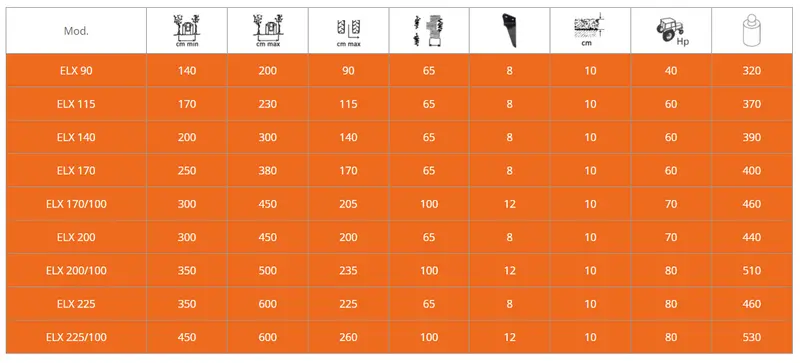

ELX 90 and ELX 115
| Attribute | ELX 90 | ELX 115 |
|---|---|---|
| Min Row (inches) | 55 | 67 |
| Max Row (inches) | 79 | 91 |
| Displacement (inches) | 35 | 45 |
| Working Width (inches) | 65 | 65 |
| Teeth No. | 8 | 8 |
| Working Depth (inches) | 10 | 10 |
| Required HP | 40 | 60 |
| Machine Weight (lbs) | 705 | 815 |
ELX 140 and ELX 170
| Attribute | ELX 140 | ELX 170 |
|---|---|---|
| Min Row (inches) | 79 | 98 |
| Max Row (inches) | 118 | 150 |
| Displacement (inches) | 55 | 67 |
| Working Width (inches) | 65 | 65 |
| Teeth No. | 8 | 8 |
| Working Depth (inches) | 10 | 10 |
| Required HP | 60 | 60 |
| Machine Weight (lbs) | 860 | 880 |
ELX 170/100 and ELX 200
| Attribute | ELX 170/100 | ELX 200 |
|---|---|---|
| Min Row (inches) | 118 | 118 |
| Max Row (inches) | 177 | 177 |
| Displacement (inches) | 81 | 79 |
| Working Width (inches) | 100 | 65 |
| Teeth No. | 12 | 8 |
| Working Depth (inches) | 10 | 10 |
| Required HP | 70 | 70 |
| Machine Weight (lbs) | 1,015 | 970 |
ELX 200/100 and ELX 225
| Attribute | ELX 200/100 | ELX 225 |
|---|---|---|
| Min Row (inches) | 138 | 138 |
| Max Row (inches) | 197 | 236 |
| Displacement (inches) | 92 | 88 |
| Working Width (inches) | 100 | 65 |
| Teeth No. | 12 | 8 |
| Working Depth (inches) | 10 | 10 |
| Required HP | 80 | 80 |
| Machine Weight (lbs) | 1,124 | 1,015 |
ELX 225/100
| Attribute | ELX 225/100 |
|---|---|
| Min Row (inches) | 177 |
| Max Row (inches) | 236 |
| Displacement (inches) | 102 |
| Working Width (inches) | 100 |
| Teeth No. | 12 |
| Working Depth (inches) | 10 |
| Required HP | 80 |
| Machine Weight (lbs) | 1,168 |
Manuals & Documents
- The Product Manual
- Machine Configuration Guide
