Product Description

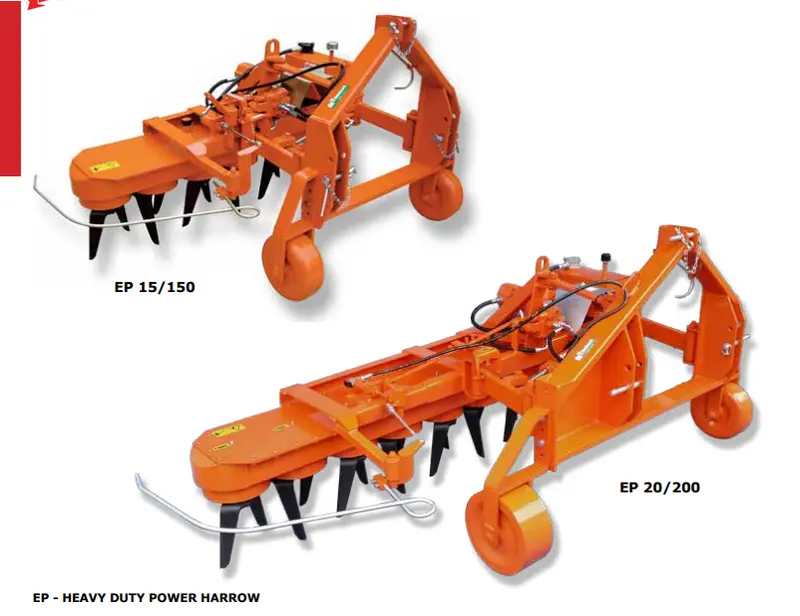

Rinieri Heavy Duty Rotary Harrow | EP Series | Working Width 39″ To 79″ inches | Horsepower 40-70 HP | For Tractors

DESCRIPTION

.video-container { position: relative; padding-bottom: 56.25%; /* Aspect ratio (16:9) */ height: 0; overflow: hidden; max-width: 100%; background: #000; } .video-container iframe { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }

The EP Heavy Duty Rotary Harrow is designed for complete weeding in vineyards and orchards, even in stony ground and close plant spacing. This machine excels at rooting out weeds without chopping them, moving soil, and leveling the earth while avoiding the creation of a hard pan. Its robust design ensures long-lasting durability, equipped with a special security joint to withstand the challenges of tough soil conditions.

With adjustable working widths, the EP harrow adapts to various row sizes, providing efficient soil management and weed removal. Hydraulic oil, a cardan joint with clutch, and 2 blades are included for optimal performance. Ideal for professionals needing reliable, heavy-duty equipment for agricultural work.

Key Features

• Special Security Joint: Equipped with a robust security joint to ensure durability in tough soil conditions, particularly in stony grounds.
• Efficient Soil Management: The EP rotary hoe performs efficient weeding without chopping the weeds, levels the earth without creating a hard pan.
• Adjustable Working Width: Various models offer adjustable working widths, allowing for flexibility in different row sizes and plant spacings.
• Complete Hydraulic System: The machine includes hydraulic oil, a cardan joint with clutch, and two blades for consistent performance.
• Heavy-Duty Construction: Built for long-term use in rugged environments, it ensures reliable performance even in close plant spacing areas.

Detailed Specifications

Frame

• 3-point hitch CAT.1-2
• Hydraulic adjustable tilting
• Wheels for stable operation

Safety

• Special security joint
• Hydraulic safety control (optional)

On the Tractor

• Cardan joint with clutch
• 2 blades and bolts

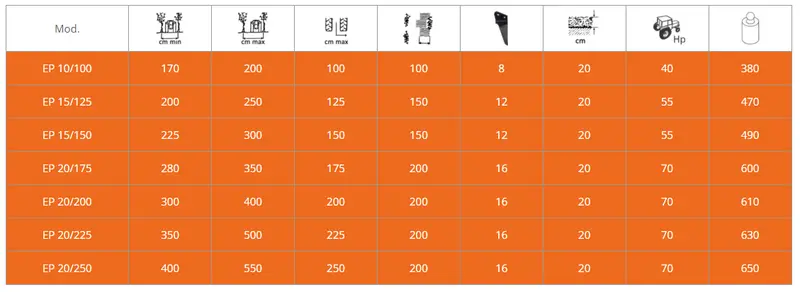

Model Specifications

Specification	EP  10/100	EP 15/125	EP 15/150	EP 20/175
Min Row  (inches)	67	79	89	110
Max Row (inches)	79	98	118	138
Displacement (inches)	39	49	59	69
Working Width (inches)	39	59	59	79
Teeth No.	8	12	12	16
Working Depth (inches)	20	20	20	20
Required HP	40	55	55	70
Machine Weight (lbs)	838	1,036	1,080	1,323

Specification	EP 20/200	EP 20/225	EP 20/250
Min Row (inches)	118	138	157
Max Row (inches)	157	197	216
Displacement (inches)	79	88	98
Working Width (inches)	79	79	79
Teeth No.	16	16	16
Working Depth (inches)	20	20	20
Required HP	70	70	70
Machine Weight (lbs)	1,345	1,389	1,433

Manuals & Documents

• The Product Manual
• Machine Configuration Guide
