Product Description

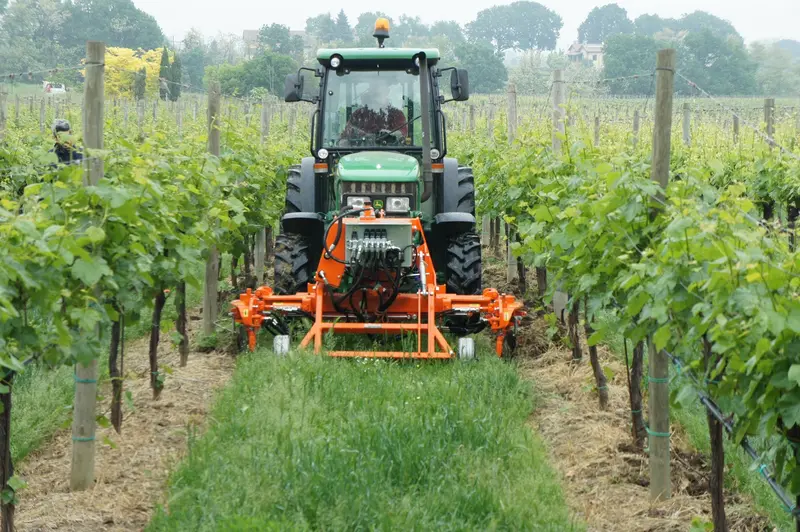

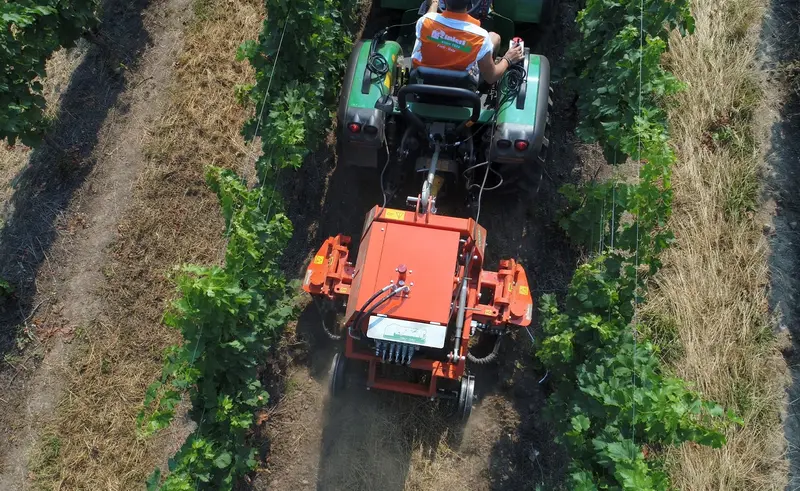

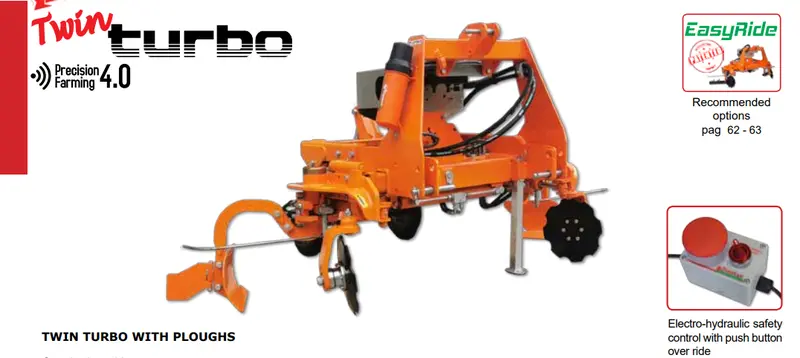

Rinieri Twin Turbo with Ploughs | Row Width 63″-169″ inches | Horsepower 70-110 HP | For Tractors
DESCRIPTION
The Twin Turbo with Ploughs is designed to maximize efficiency by cultivating both sides of a row in a single pass. Available for front or rear mounting, this system features two frame sizes to accommodate row widths from 67″ to 110″ or 98″ to 150″. If the tractor’s oil flow is insufficient, an optional hydraulic kit can provide the necessary power.
The machine includes inter-row plows with open discs, adjustable width wheels, and the option to switch between blades and ploughing kits for greater versatility in farming tasks.
Key Features
- Double-Sided Efficiency: Work both sides of the row simultaneously, maximizing productivity with fewer passes.
- Versatile Mounting and Frame Sizes: Choose from front or rear mounting and two frame sizes to accommodate different row widths.
- Hydraulic Adjustments: Independent hydraulic side shift and manual tilting (available on N90 and W115 models) for precision control, plus adjustable gauge wheels for stability.
- Safety Systems: Features electro-hydraulic safety control with push-button override and a maximum pressure valve for safe and reliable operation.
- Optional Add-ons: Includes ploughing kits, mouldboard blades, and wide blades for enhanced functionality across different farming tasks.

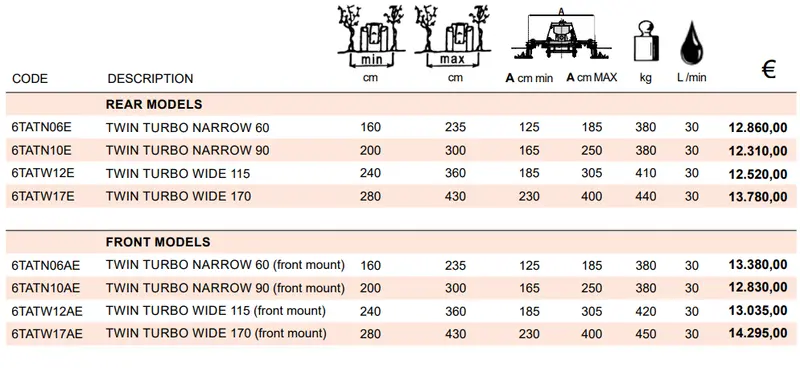

Detailed Specifications
| Model | Min Width (inches) | Max Width (inches) | A Min (inches) | A Max (inches) | Weight (kg) | Flow Rate (L/min) | Required Horsepower (HP) |
|---|---|---|---|---|---|---|---|
| 6TATN06E | 63 | 93 | 49 | 73 | 380 | 30 | 70-90 |
| 6TATN10E | 79 | 118 | 65 | 98 | 380 | 30 | 70-90 |
| 6TATW12E | 94 | 142 | 73 | 120 | 405 | 30 | 90-110 |
| 6TATN06AE (Front Mount) | 63 | 93 | 49 | 73 | 380 | 30 | 70-90 |
| 6TATN10AE (Front Mount) | 79 | 118 | 65 | 98 | 380 | 30 | 70-90 |
Manuals & Documents
Machine Configuration Guide
