Product Description

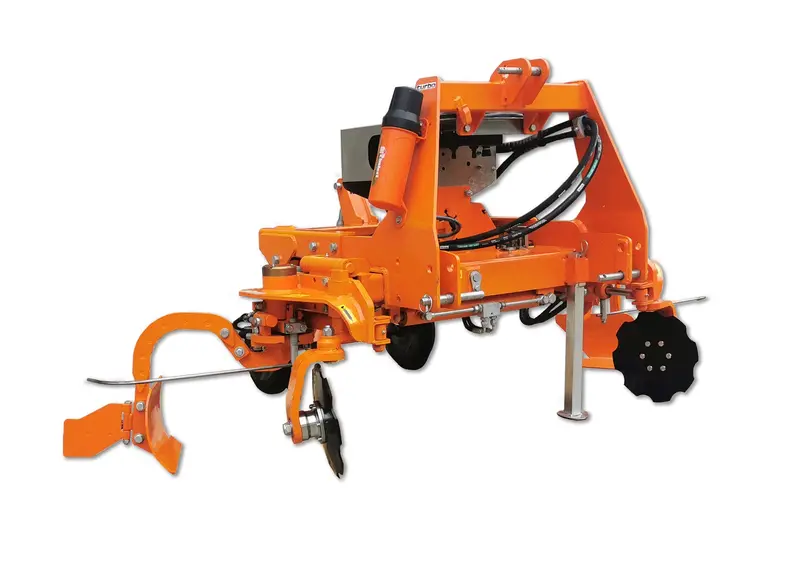

Rinieri Tools Holder Twin Turbo EVO | Row Width 63″-169″ inches | Horsepower 70-90 HP | For Tractors
DESCRIPTION

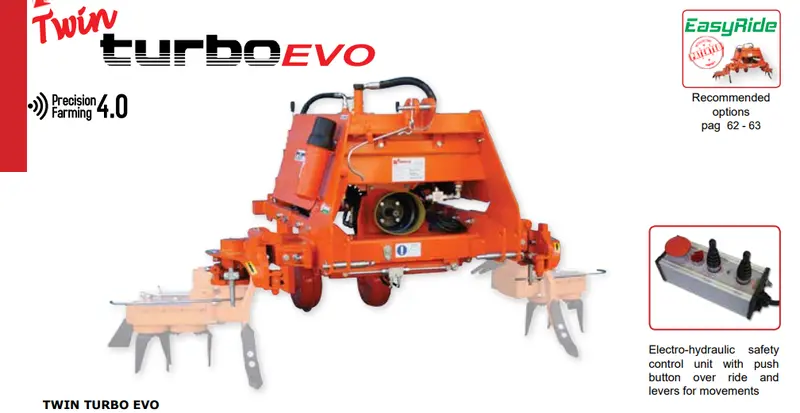

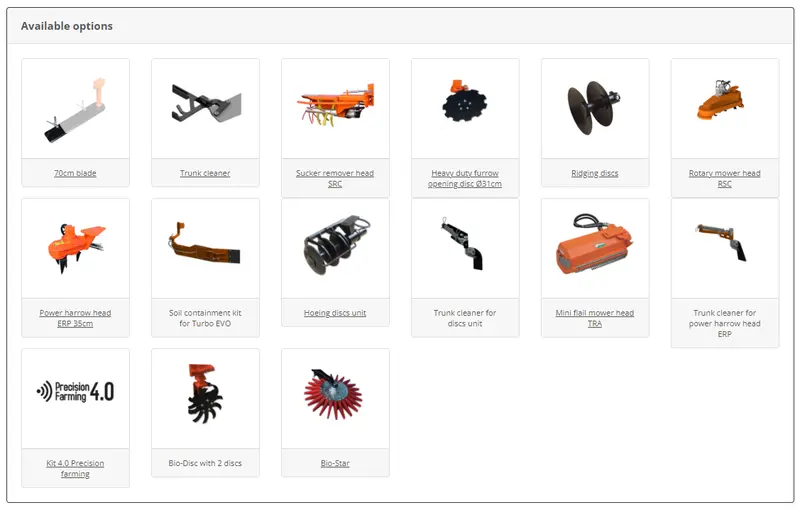

The Twin Turbo EVO is an advanced inter-row cultivator designed to work on both sides of a row simultaneously, maximizing operational efficiency in vineyards and orchards. The machine can be equipped with a variety of tools including hoeing blades, ploughs, ridging discs, power harrows, flail mowers, and sucker removers, making it a versatile solution for different field tasks.
This robust machine is equipped with an independent hydraulic side shift and hydraulic tilting system for enhanced maneuverability. It also features adjustable gauge wheels for precise depth control. The Twin Turbo EVO is available in both front and rear-mounted versions and comes with an electro-hydraulic safety system to ensure secure operation.
Key Features
- Dual-Sided Operation: The Twin Turbo EVO is designed to simultaneously work on both sides of a row, improving efficiency and reducing the time spent on fieldwork.
- Versatile Tool Compatibility: Capable of working with multiple attachments like hoeing blades, ridging discs, power harrows, and more, allowing you to customize the machine based on your needs.
- Hydraulic Adjustments: Independent hydraulic side shifts and hydraulic tilting offer easy customization for different field conditions and row widths.
- Electro-Hydraulic Safety: Safety features include a push-button override system, in-and-out movement speed regulator, and a max pressure valve for safe operations.
- Advanced Hydraulic Kit: Equipped with a triple hydraulic pump (50+50+40 L) and an oil tank (115 L) with a cooler, ensuring consistent performance in demanding conditions.
Detailed Specifications
Frame Features
| Feature | Specification |
|---|---|
| Hitch Type | 3-point hitch CAT.1-2 |
| Side Shifts | Independent hydraulic |
| Tilting | Hydraulic |
| Gauge Wheels | Adjustable |
Safety Features
| Feature | Specification |
|---|---|
| Safety Control | Electro-hydraulic with push-button override |
| Movement Speed Regulator | In-and-out movement speed regulator |
| Pressure Valve | Maximum pressure valve |
Hydraulic Kit
| Feature | Specification |
|---|---|
| Hydraulic Pump | Triple hydraulic pump (50+50+40 L) |
| Oil Tank | 115 L with oil cooler |
On The Tractor
| Feature | Specification |
|---|---|
| Control | 4-movements electro-hydraulic control |
| Hydraulic Pump | Triple hydraulic pump |

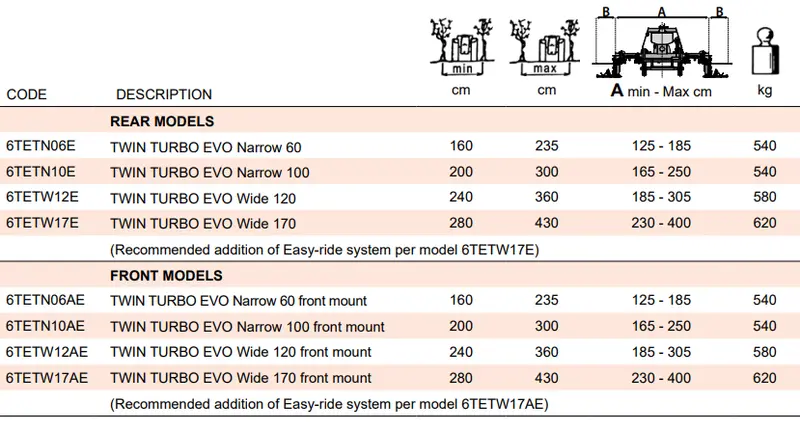

6TETN06AE & 6TETN10AE – Narrow Front Models
| Property |
6TETN06AE – Narrow 60 Front |
6TETN10AE – Narrow 100 Front |
|---|---|---|
| Description | TWIN TURBO EVO Narrow 60 Front Mount | TWIN TURBO EVO Narrow 100 Front Mount |
| Width min (in) | 63 | 79 |
| Width max (in) | 93 | 118 |
| A min-max (in) | 49 – 73 | 65 – 98 |
| Weight (lb) | 1190 | 1190 |
6TETW12AE & 6TETW17AE – Wide Front Models
| Property |
6TETW12AE – Wide 120 Front |
6TETW17AE – Wide 170 Front |
|---|---|---|
| Description | TWIN TURBO EVO Wide 120 Front Mount | TWIN TURBO EVO Wide 170 Front Mount |
| Width min (in) | 94 | 110 |
| Width max (in) | 120 | 169 |
| A min-max (in) | 73 – 120 | 91 – 157 |
| Weight (lb) | 1279 | 1367 |
Manuals & Documents
- The Product Manual
- Machine Configuration Guide
