Description
Product Description
TAG Log & Lumber Forks Class 100 | Carriage Width 60″ | 48″ Tine Length | Machine Size 6-9 Tons | For Wheel Loaders
DESCRIPTION
TAG’s Log & Lumber Forks with Double Independent Top Clamps bring enhanced gripping performance to compact wheel loaders working in lumber yards, timber staging areas, and mill sites. Specifically designed for Class 100 loaders, this model combines robust carriage construction and rod-mounted tine technology with dual hydraulic clamp arms for controlled and secure load management.
This compact configuration includes all the benefits of TAG’s standard log forks—boxed high-strength carriage, split collar lock system, and adjustable tines—plus the added versatility of twin hydraulic clamps that conform to irregular wood bundles. Requires third-function hydraulics for full clamp operation.
Key Features
- Dual Independent Top Clamps Clamp arms operate independently for secure holding of mixed or uneven lumber loads.
- Heavy-Duty Boxed Carriage Structure With full-length gussets and steel side plates for structural integrity.
- Rod-Mounted Tines with Split Collar Locks Prevent rod damage during tine repositioning—improves longevity.

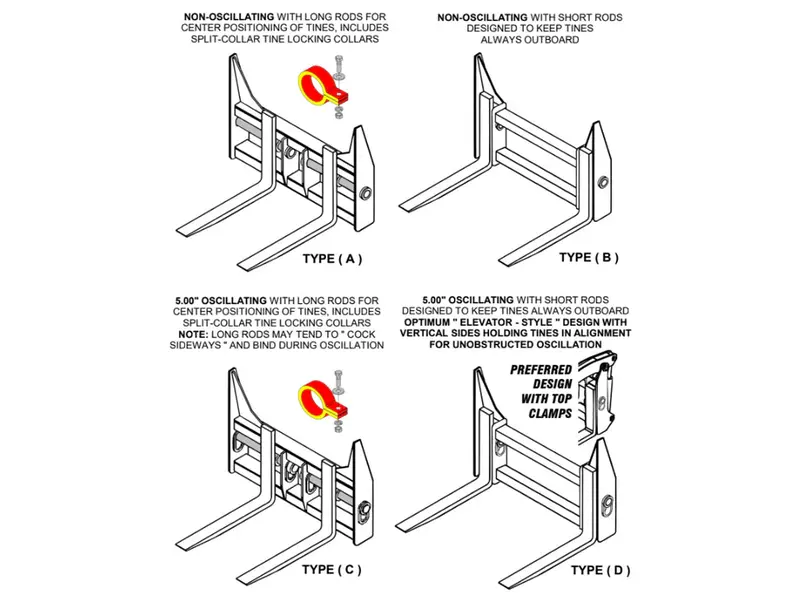

- Optional 5.00″ Oscillating Rod Setup Increases performance over rough terrain and irregular stacking conditions.
- Cross-Over Relief Valve System Protects hydraulic cylinders from overpressure—supports safe, repeat operation.
- Clamp Plates & Skins Built from single-piece high-strength steel—ideal for high-load clamping applications.
- Mounting Versatility Available in Pin-On and Quick Coupler formats to match fleet configurations.
- Third Function Hydraulics Required Ensures full control and independent operation of both clamps.
Detailed Specifications
| SKU # | Tine Size | Weight (lbs) |
|---|---|---|
| P100DTC6048 | 2.5″ x 6″ x 48″ | 1,400 |
| QC100DTC6048 | 2.5″ x 6″ x 48″ | 1,400 |
