Product Description

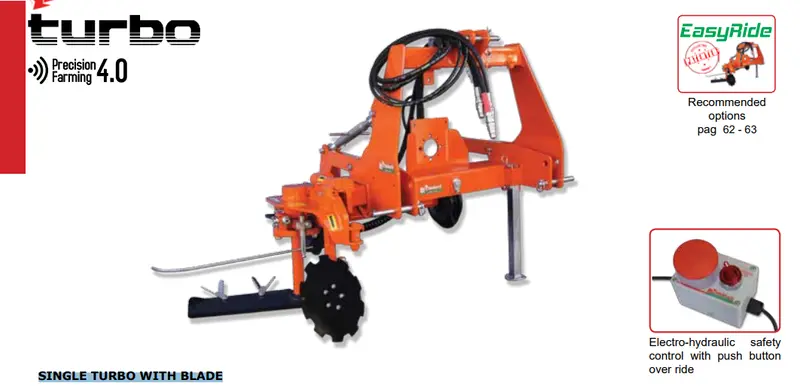

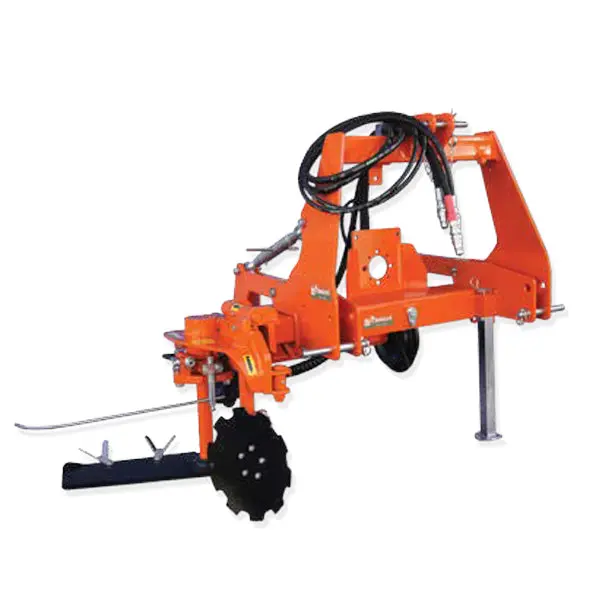

Rinieri Single Turbo With Blade | Row Width 67″-236″ inches | Horsepower 40-60 HP | For Tractor
DESCRIPTION

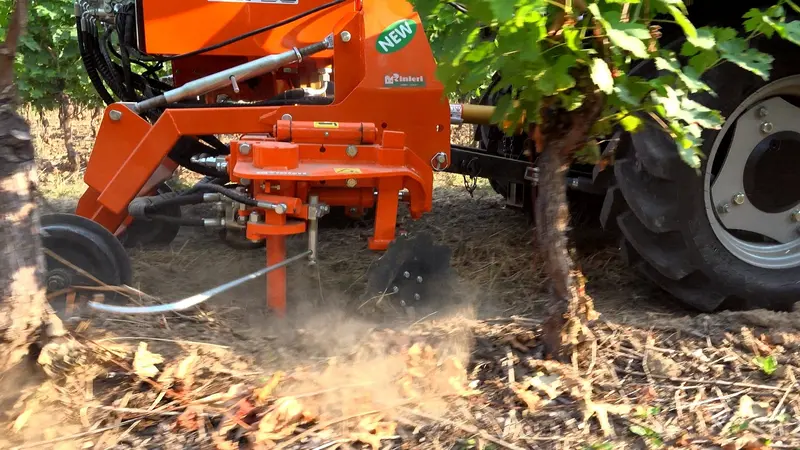

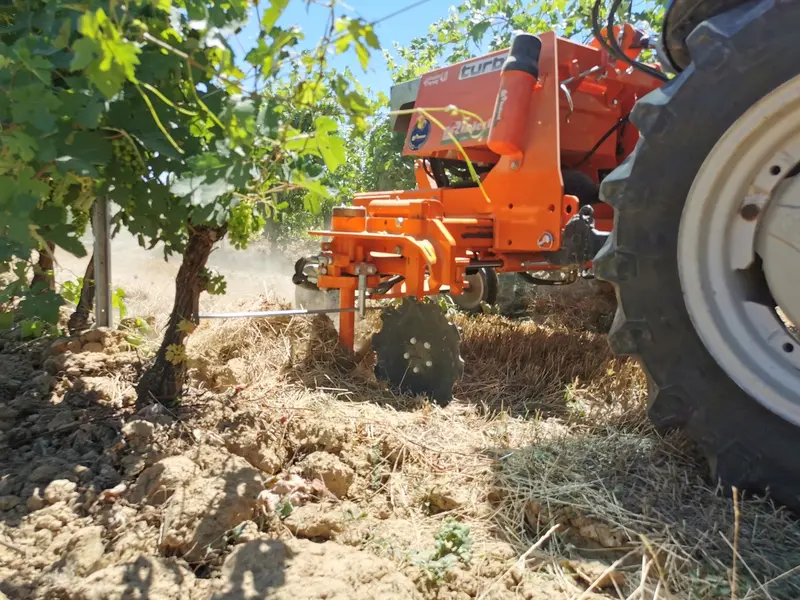

The Single Turbo with Blade is an inter-row cultivator designed for precision weed control in vineyards and orchards. It features a hoeing blade with an open disc, allowing for ecological weeding at working speeds of up to 10 km/h. Available in both narrow and wide configurations, the Turbo can be mounted at the front or rear of the tractor and comes with adjustable gauge wheels for height control.
The standard frame includes a manual side shift for narrow models and a hydraulic side shift for wide models, along with hydraulic height adjustment and tilting for ease of use. The blade can also be replaced with a ploughing kit, which includes a tree trunk cleaner, making this machine highly versatile.
Key Features
- Efficient Weed Control: The hoeing blade and open disc configuration allows the machine to rotate 90° to avoid plants, offering ecological weeding control.
- Versatile Frame Design: The Turbo is available in both front and rear mounting options, with three working widths, making it adaptable to a range of setups.
- Hydraulic and Manual Adjustments: Hydraulic side shift for wide models and manual side shift for narrow models, along with adjustable gauge wheels, offer flexible operation for various field conditions.
- Safety Systems: Features an electro-hydraulic safety control system with a push-button override and a max pressure valve to ensure safe and reliable operations.
- Optional Add-ons: Additional options such as a ploughing kit, electro-hydraulic control, wide blades, and trunk cleaners enhance the machine’s performance.
Detailed Specifications
| Model | Min Row (inches) | Max Row (inches) | Displacement (inches) | Oil Demand (L/min) | Machine Weight (lbs) | Required Horsepower (HP) |
|---|---|---|---|---|---|---|
| Turbo Narrow Blade Bar 120 | 66.93 | 133.86 | 45.28 – 68.9 | 30 | 683.43 | 40-60 |
| Turbo Wide Blade Bar 170 | 98.43 | 177.17 | 61.02 – 84.65 | 30 | 749.57 | 50-70 |
| Turbo Wide Blade Bar 200 | 118.11 | 236.22 | 64.96 – 108.27 | 30 | 793.66 | 60-80 |
| Turbo Narrow Blade Bar 120 (EASY RIDE) | 66.93 | 133.86 | 45.28 – 68.9 | 30 | 683.43 | 40-60 |
| Turbo Wide Blade Bar 170 (EASY RIDE) | 98.43 | 177.17 | 61.02 – 84.65 | 30 | 749.57 | 50-70 |
| Turbo Wide Blade Bar 200 (EASY RIDE) | 118.11 | 236.22 | 64.96 – 108.27 | 30 | 793.66 | 60-80 |
| Turbo Narrow Blade Bar 120 (Front Mount) | 66.93 | 133.86 | 45.28 – 68.9 | 30 | 683.43 | 40-60 |
| Turbo Wide Blade Bar 170 (Front Mount) | 98.43 | 177.17 | 61.02 – 84.65 | 30 | 749.57 | 50-70 |
| Turbo Wide Blade Bar 200 (Front Mount) | 118.11 | 236.22 | 64.96 – 112.2 | 30 | 793.66 | 60-80 |
Manuals & Documents
- The Product Manual
- Machine Configuration Guide
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and “wear parts” including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
